MBM  |  SKU: CU0487

MBM AeroCut Prime Complete Air Feed Digital Finisher

$49,999.00
Digital Finisher System with slitter / cutter / creaser / perforator with a speed of 24 sheets/ min and 4" sheet capacity

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name MBM AeroCut Prime Complete Air Feed Digital Finisher
Manufacturer MBM
SKU CU0487
Sheet Capacity 4"
Speed (sheet/min) 24
Dimensions (H”xW”xD”) 41.13 x 57.6 x 30.3
Paper Size (W" x L") 8.27 x 8.27 to 14.5 x 47+
Paper Weight (Gsm) 120 - 400 gsm
Power Supply (Volts) 100 - 120 V
Tri-Suction Feeding Mechanism Yes
Feed Tray Capacity 26.75"
Applications business cards, post cards, invitations, greeting cards, leaflets and tickets
Flex Mode Yes
Warranty 1 year limited warranty
Included Software Lytrod Intellicut Software
Optional Accessories Cross perforator, Jump perforator, Barcode reader and conveyor stacker unit
Product Description:

Features of the MBM AeroCut Prime Complete Air Feed Digital Finisher

  • Allows perfection at creasing on digital printing stocks with 5 pressure levels
  • Operating speed of 24 sheets in a minute and 1440 in an hour
  • Finishes applications like business cards, post cards, invitations, tickets etc.
  • Features 2 self-sharpening blades cutting and slitting units to trim sheet margins
  • Prints stocks one by one of the feed tray with air suction top feed system

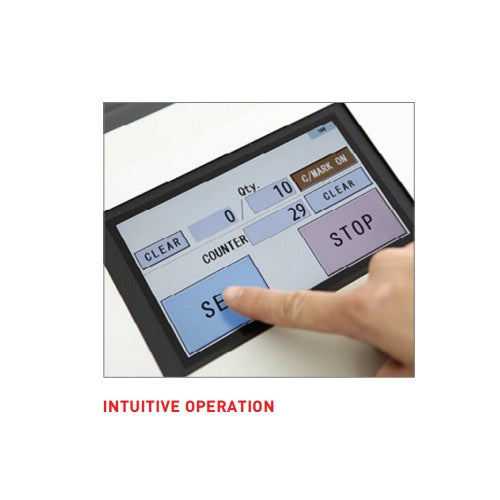

  • Intuitive operations with 7” touch screen control panel sets job programs

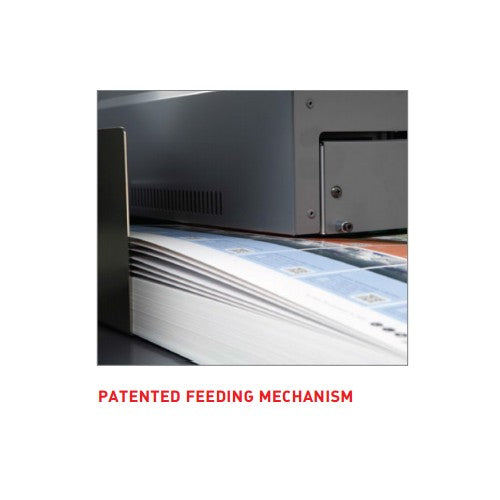

  • Patented tri-suction feed system mechanism decreases misfeeding or double feed

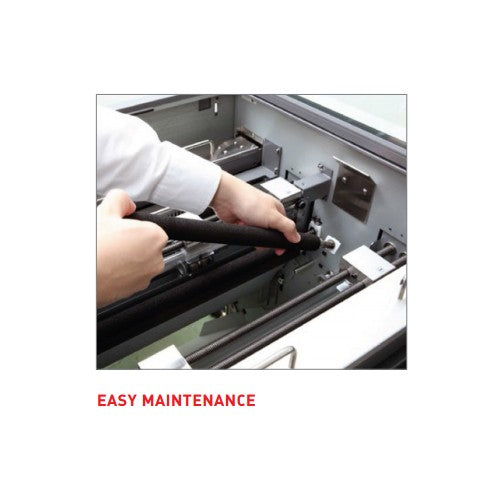

  • Easy maintenance with detachable rollers preventing paper jams
  • Safety features with access covers which only operate in closed position
  • Vision Direct software promotes efficient cutting with fast and simple procedure
  • Includes cross and jump perforator, barcode reader and conveyor stacker
  • 1-year limited warranty excluding wearables

Performance of MBM AeroCut Prime Complete Air Feed Digital Finisher

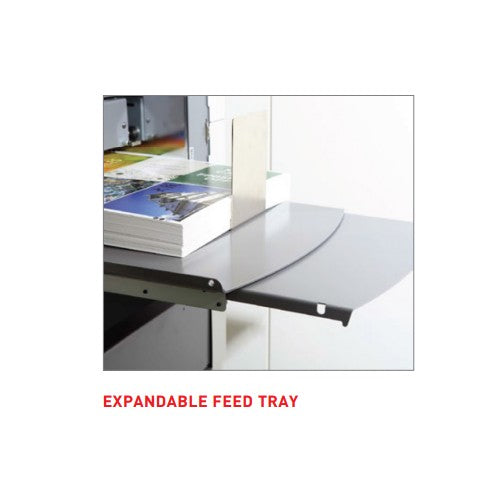

If you require a complete machine required for you digital finishing needs then look nowhere else as MBM introduces AeroCut prime digital feeder. This machine is inclusive of a creasing unit that can be adjusted in 5 levels, slitting and cutting units with 2 single and double blade slitters for accurate trimming and an air feeding unit that stocks precisely without any damage. The cutter stocks up to 400gsm paper weight whereas the blades installed are self-sharpening. There is an expendable feed tray with stacking capacity of 4” and stocks up to 26.75”.

The AeroCut Prime is stacked with amazing features that makes it the superior choice for customers. With heavy metal body with casters the MBM AeroCut Prime has patented feed tray for correct insertion, flex mode, safety access covers and easy maintenance. This all in one machine is the ideal machine for a workplace as it not only consists of a creasing unit but also consist of cross and jump perforator, bar code reader and conveyer stacker unit. Vision Direct software promotes efficient cutting with fast and simple procedure like formatting, imposing, and adding personalized information etc.

Warranty & Recommendation

To ensure customer satisfaction the MBM AeroCut Prime is backed with one-year limited warranty excluding wearable. This AeroCut all in one machine is ideal for your workplace as it a hub with all the functions you require for perfect digital finishing products.

Frequently Asked Questions

Q: For how long am i entitled to warranty?

A: The AeroCut Prime digital finisher comes with a 1 year limited warranty excluding wearables.



Q: How does the Lytrod VisionDirect software assits with AeroCut Prime?

A: The Lytrod VisionDirect software promotes efficient cutting with fast and simple procedure.



Q: What does the Flex Mode do?

A: The Flex mode allows operators to cut multiple size cards from a page and add the desired number of creases.



Q: My AeroCut Prime detects double-feed mistakenly, what should i do?

A: Adjust the sensitivity of the double-feed detection sensor of your AeroCut Prime digital finisher.

Video of MBM AeroCut Prime Complete Air Feed Digital Finisher
