Formax FD 7104-Standard 2F High Volume Modular Inserter
Formax FD 7104-Standard 2F High Volume Modular Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 7104-Standard 2F High Volume Modular Inserter
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax FD 7104-Standard 2F High Volume Modular Inserter |
| Manufacturer | Formax |
| SKU | FD 7104-Standard 2F* |
| Dimensions (H”xW”xD”) | 36” H x 76.5” W x 18.5” D |
| Envelope Hopper Capacity (Envelopes) | 800 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4500 |
| Duty Cycle (Pieces/month) | 180,000 |
| Feed Stations w/ Sheet Capacity | One Standard and One High Capacity with 500-sheet 1,000-sheet feeder , from 1 to 17 sheet feeders |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 5.5 - 16 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 115V |
| Optional Accessories | Productivity Package, Various Modules (Insert Feeders, Intelligent Feeders, Feeder Folders, BRE Feeder) and Envelope Sorter/Diverter, Catch Tray, Sorter Catch Tray |
| Programmable Fold Applications | Unlimited |
| Programmable Fold Applications | Unlimited |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 3.5 - 6.48 |
| Envelope Size (H") | 6 - 10.37 |
| Max. sheet Size (W") | 5.5 - 9 |
Product Description:
Features of Formax FD 7104 Standard 2F Folder & Inserter
- Includes one standard and one high capacity feeder with 500 and 1000 sheet capacity
- Provides the flexibility to add up to 8 modules and 17 feed stations
- Automatic job setup makes the machine to used right out of the box
- Processing speed of 4500 finished envelopes in an hour and 180,000 envelopes monthly
- Easy to run recurring jobs with the ability to store unlimited programmable jobs
- Capacity of standard feeder has 500 and high capacity feeder has 1000 sheets.
- Cascade mode to link feeders for continuous operations and maximizing output
- High capacity output conveyor holds up to 500 filled envelopes until retrieved
- Fold types of C, Half, Z, Double Parallel and no fold supported
- Powerful processing ability to fold eight sheets at once
- Mechanical document detections ensure no double document is fed
Performance of Formax FD 7104 Standard 2F Folder & Inserter
Formax outshines its competitors with providing the best products in the inserter arsenal. Among its variety of products, the Formax 7104 Standard 2F has got your folding, inserting and sealing jobs covered. The powerful processor can finish 4500 processed envelopes in an hour which maximizes productivity and minimizes any manual work. The Standard 2F comes with a feeder combination of one standard feeder and one high capacity feeder with 500 and 1500 sheet capacity respectively. The feeders are linked in the cascade mode that maximizes output so that when one feeder empties the next starts feeding automatically.

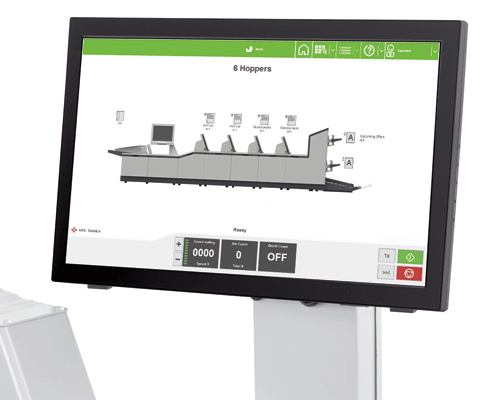

The Formax 7104 Standard 2F has a large 22” touch screen control panel that allows users to adjust and command as well as it can store unlimited recurring jobs that makes it easier for instant use. The 7104 Standard 1F supports fold types of C, Half, Z, Double Parallel and no fold and has the powerful folding capacity of 8 sheets at a time. The 7104 standard 2F includes the daily mail mode which feeds stapled sets by opening accumulator. Moreover, the inserter includes a custom cabinet with castors, high capacity output conveyor with 500 envelope capacity, glossy paper capacity and double document detectors.
Recommendation & Warranty
The Formax 7104 inserter series are fully automated and is a ready to use machine which helps in providing accuracy with folding and inserting jobs. This compact machine contains various features that makes it easier to use and operate. Furthermore, it is backed with 90 days warranty of parts and labor.
Frequently Asked Questions
Q: For how long am I entitled to warranty?
A: The Formax 7104 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 7104 series can save?
A: The 7104 series can save up to unlimited programmable jobs for frequent use.
Q: How much sealing liquid is required for 100,000 envelopes?
A: The 7104 sealing liquid of 10 liters in reservior for 100,000 envelopes.
Q: Does the 7104 series has the capability to feed glossy paper?
A: Tower Folder and Feeder Folder can feed glossy paper
