Formax FD 6608 Standard 6 Folder & Inserter
Formax FD 6608 Standard 6 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6608 Standard 6 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6608 Standard 6 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6608-Standard 6 |
| Dimensions (H”xW”xD”) | 31” H x 60” W x 18” D |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 6 Standard feed stations with 325 sheet capacity each |

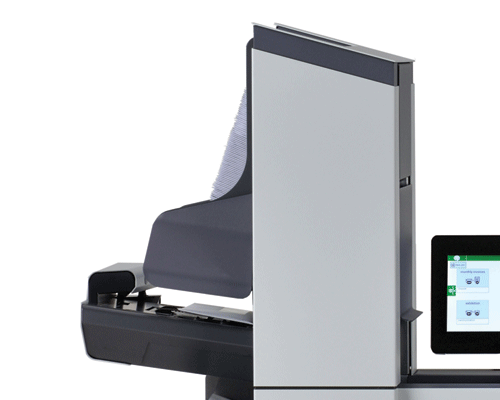

| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 100V |
| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5.1 - 9 |
Product Description:
Features of Formax FD 6608 Standard 6 Folder & Inserter
- Six-Station with Standard Feeders with 325 sheet capacity each
- Processing speed up to 4300 pieces in an hour and 80000 pieces per month
- Capable to store 50 programmable jobs for instant use

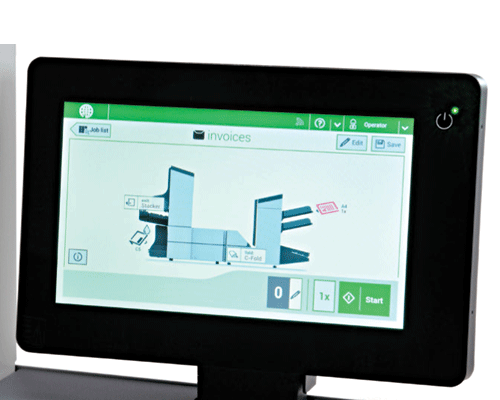

- 10” Color touchscreen control panel with graphic icons for quick and easy use
- Double document detection to ensure no repetition of document is fed
- Multi feeding features pulls a number of pieces then collate and insert automatically
- Daily Mail Mode easily inserts stapled sets providing flexibility
- Eco mode saves energy by putting inserter into standby if inactive for an hour
- Link feeders for high productivity and continuous operations in cascade mode
- Supported fold types C, Half, Z, Double Parallel and no fold
- 50 programmable can be stored for frequent use
Performance of Formax FD 6608 Standard 6 Folder & Inserter
The Standard 6 is the top-notch inserter with 6 standard feeders of the 6608-inserter series arsenal. The 6 stations with each 325-sheet capacity adds to productivity of your workplace. The 6608 Special inserter is rapid as it provides you 4300 sheets into neatly filled and folded envelopes and 80000 monthly, ready to be mailed. The folding and inserting are done at once and for continuous operations the feeders must be linked in cascade mode. For frequent use 50 programmable jobs can be saved and used instantly without the hassle of resetting again.
The 6608 Standard 6 has so many great features, it has a 10” color touchscreen control panel that allows users to easily adjust and operate. It supports variety of folds like C, half, Z, double parallel and no fold and can process 10 sheets in half-fold and up to 8 sheets in tri-fold mode. The 6608 series inserters are equipped with AutoSetTM that automatically sets the paper length, paper thickness, fold type, and envelope size making the user operations easy. The eco-friendly device sleeps after one hour of inactivity which saves energy and also preserves the life of the machine.
Recommendation & Warranty
The FD 6608 Standard 6 has the power to process many applications and offers reliability of larger machines with ease. This compact machine comes with a 90-day warranty of parts and labor to ensure customer satisfaction. The variety of features makes it an ideal for any size of office or workplace environment.
Frequently Asked Questions
Q: What is the difference in the Formax 6606 series and 6608 series?
A: Formax 6608 series is the replace of the 6606 series and has a new design and a 22” touch screen control panel.
Q: For how long am I entitled to warranty?
A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 6608 series can save?
A: The 6608 series can save up to 50 programmable jobs for frequent use.
Q: What is the difference between all the models of the 6608 series?
A: The 6608 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model have.
Video of Formax FD 6608 Standard 6 Folder & Inserter
