Formax FD 6406 Standard 2 Folder & Inserter
Formax FD 6406 Standard 2 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6406 Standard 2 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6406 Standard 2 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6406-Standard 2 |
| Dimensions (H”xW”xD”) | 24.8" x 16.5" x 58.3" |
| Envelope Hopper Capacity (Envelopes) | 325 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4000 |
| Duty Cycle (Pieces/month) | 60,000 |
| Feed Stations w/ Sheet Capacity | 2 standard feeders with 325 sheet capacity each |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 100 |
| Optional Accessories | Short Feed Trays, Production Feeders, CIS Scanner, OMR, BCR and OCR, Side Exit Tray, Custom Cabinets and 402 Series Joggers |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5.1 - 9 |
Product Description:
Features of FD 6406 Standard 2 Folder & Inserter
- Configurated with two stations of 2 standard feeders
- 7” touchscreen display with international recognized symbols for easy use
- Mid volume inserter with processing speed of 4000 envelopes per hour
- 50 programmable recurring job can be stored for instant recall
- Handles variety of envelope sizes up to 6.3" H x 9.7" W
- Fold types of C, half, Z, double parallel and no fold are supported
- Feeders can be linked for continuous operation in Cascade Mode
- Vertical output stacker for holding up to 500 finished envelopes
- Eco mode put inserter on standby of inactive for an hour
- User friendly machine with automatic functioning for easy use
- Easily inserts stapled sets and allows multi feeding
Performance of FD 6406 Standard 2 Folder & Inserter

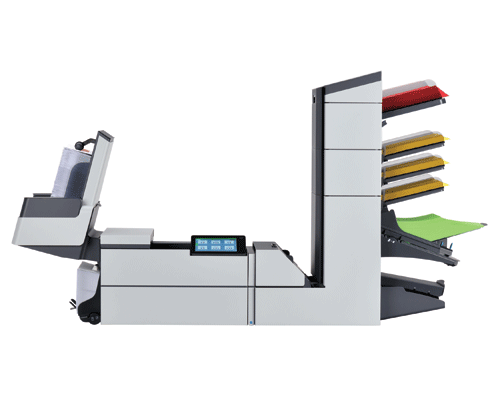

The 6406 mid volume inserter series includes a variety of configurations like Standard 2. The standard 2 is equipped with advanced technology that folds and inserts together saving time and improving productivity. The Standard 2 has 2 station configurations that includes 2 standard feeders and each feeder is capable of holding 325 sheets. The inserter is capable of processing 4000 envelopes per hour. The machine is also mounted with a high vertical stacker that holds up to 500 processed envelopes. The user friendly 7” color touchscreen control panel with graphic display for quick and easy processing.
AutoSet lets you load the envelopes and the inserter adjusts the settings automatically. The envelope and paper sensors indicate on control panel which feeders need to be refilled. The Standard 2 is convenient for frequent and recurring jobs as it can store up to 50 programmable jobs. Cascade mode allows feeders to be linked and when one feeder empties another takes over. The powerful folding capacity can fold up to 10 sheets at once in half fold and the fold types supported by Standard 2 are C, half, Z, double parallel and no fold. The eco friendly device is automatically put on standby after 1 hour of inactivity.
Recommendation & Warranty
The FD 6406 Standard 2 is capable of inserting and folding with ease and efficiency. This mid volume inserter is ideal for medium offices that will make mailing operations the easiest task one the list. The machine is backed with 90-day warranty on parts and labor to ensure customer satisfaction.
Frequently Asked Questions
Q: For how long am i entitled to warranty?
A: The Formax 6406 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 6406 series can save?
A: The 6406 can save up to 50 programmable jobs for frequent use.
Q: My envelopes are double fed, what should i do?
A: This may happen when the envelopes not placed properly in the hopper. Check and replace if needed.
Q: What fold types are supported by the 6406 series?
A: The fold types supported by the 6406 series is C, Half, Z, Double Parallel and no fold
