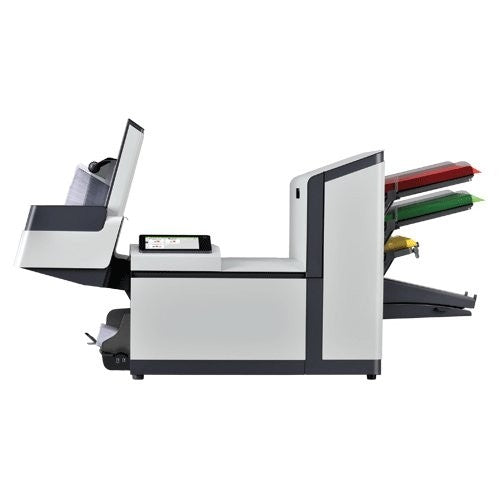

Formax FD 6210 Special 2 Folder & Inserter
Formax FD 6210 Special 2 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6210 Special 2 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6210 Special 2 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6210-Special 2 |
| Dimensions (H”xW”xD”) | 36” H x 16.5” W x 49” D |
| Envelope Hopper Capacity (Envelopes) | 150 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 2200 |
| Duty Cycle (Pieces/month) | 15000-20000 |
| Feed Stations w/ Sheet Capacity | 2 Feed Station with 325 Sheet Capacity Each and 1 Special Insert/BRE feeder with 50 BREs or 325 Inserts |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 120V |

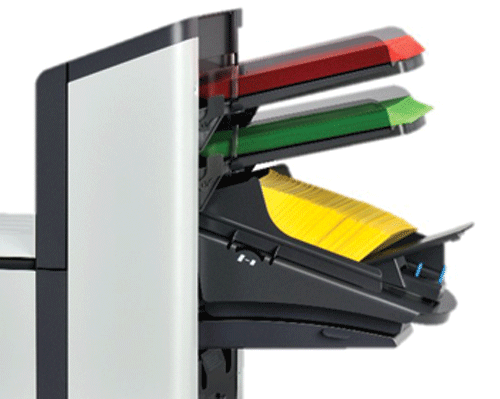

| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Single or Multi-Code Reading Licenses, Productivity Package, Front or Rear Side Exit Tray and Catch Tray |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5 - 9 |
Product Description:
Features of FD 6210- Special 2 Folder & Inserter

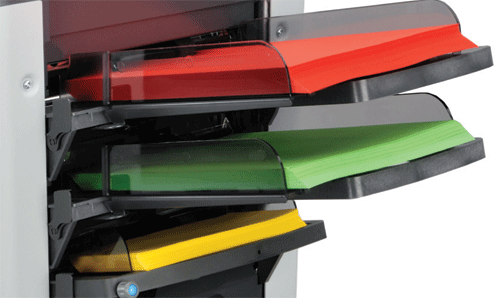

- Special 2 features two sheet feeders and a special insert/BRE feeder
- Capable of processing up to 2000 to 2200 pieces per month and up to 15000 pieces per month

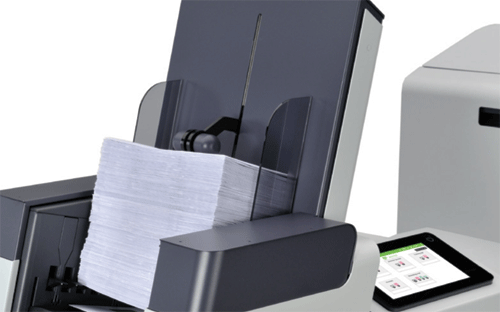

- High capacity output stacker that holds up to 500 forms easily
- Special 2 has a different roller that can process glossy or thicker inserts
- Envelope and paper sensors presence on touchscreen to assist users
- Fold types of C, V, Z, Double Parallel, no fold supported
- The documents are folded and inserted together and sealed if instructed
- Features 7” full-color touchscreen control panel with graphical interface for easy use
- Correctly reads OMR, 1D and 2D barcodes printed at any side on a document
- Eco mode is enabled that sleeps device when inactive for an hour
The FD 6210 Special 2 is designed with advanced technology that folds and inserts documents simultaneously and offers user friendly features and flexibility. The processing speed of the inserter is 2200 pieces in an hour and the monthly cycle of the machine is 15000 and 20000 a month. The Special 2 is equipped with two sheet feeders and a special insert/BRE feeder and the special insert has a different roller that can handle glossy or thicker inserts. The Special 2 is a user-friendly machine as it is equipped with 7” full-color touchscreen control panel with graphical interface for easy use.
AutoSetTM for one-touch setup of new jobs by automatically measuring paper lengths, envelope sizes and fold lengths. The feeders can hold up to 325 sheets each and the feeder can be linked in a pair. When the first feeder is empty, the device switches to the other feeder and this feature grants you to just give command to the machine and do your other tasks. The device is eco-friendly as it puts the Special 2 on standby if inactive for an hour. The Special 2 has a clamshell design that allows easy access to the paper path and correctly reads OMR, 1D and 2D barcodes printed at any side on a document.
Recommendation & WarrantyThe 6210 Special 2 has the power to process many applications and offers reliability of larger machines to small business. The variety of features makes it an ideal for any size of office or workplace environment. To ensure customer satisfaction this compact machine comes with a 90-day warranty of parts and labor.
Frequently Asked Questions
Q: For how long am i entitled to warranty?
A: The Formax 6210 series comes with a 90 day warranty on parts excluding wearables and labor.
Q: My envelopes are double fed in to my 6210 inserter, what should i do?
A: This may occur when envelopes not placed properly in the hopper. Check and replace accordingly.
Q: How do i maintain my 6210 insterer properly?
A: Keep the system in proper condition by removing dust, paper remains etc daily.
Q: What is a folder unit?
A: The fold unit folds the documents and 6210 series can fold into C,V,Z, double V fold and no fold.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs alot then you can save it as a job for instant use.
Video of Formax FD 6210 Special 2 Folder & Inserter
