Formax FD 6210 Basic 2 Folder & Inserter
Formax FD 6210 Basic 2 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
Product Name | Formax FD 6210 Basic 2 Folder & Inserter |
Manufacturer | Formax |
SKU | FD 6210-Basic 2 |
Dimensions (H”xW”xD”) | 36” H x 16.5” W x 49” D |
Envelope Hopper Capacity (Envelopes) | 150 |
Setup | Autoset, one-touch setup |
Speed (Pieces/hr) | 2200 |
Duty Cycle (Pieces/month) | 15000-20000 |
Feed Stations w/ Sheet Capacity | 2 Feed Station with 325 Sheet Capacity Each |
Vertical Stacker Capacity (Filled Envelopes) | 500 |
Max. sheet Size (H") | 3.5 - 14 |
Warranty | 90 day parts and labor |
Country of Origin | United States |
Power Supply (Volts) | 120V |

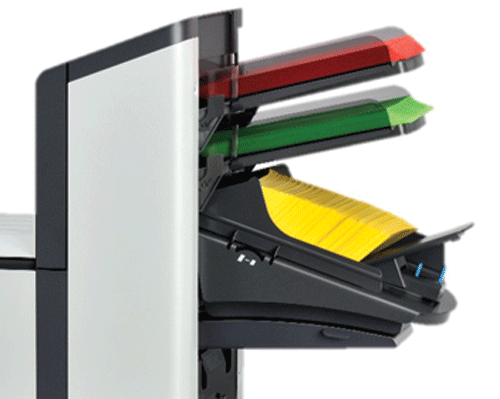

Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Single or Multi-Code Reading Licenses, Productivity Package, Front or Rear Side Exit Tray and Catch Tray |
Programmable Fold Applications | 50 |
Programmable Fold Applications | 41 - 60 |
Fold Types | C, V, Z, Double Parallel, no fold |
Double Feed Detection | Yes |
Envelope Size (W") | 6.3 - 9.7 |
Envelope Size (H") | 3.5 - 6.35 |
Max. sheet Size (W") | 5 - 9 |
Product Description:
Features of FD 6210- Basic 2 Folder & Inserter
- Processes up to 2000 to 2200 pieces per hour enhancing productivity

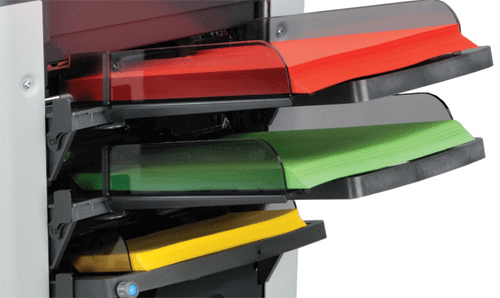

- The Basic 2 model comes with 2 automatic sheet feeders
- 7” innovative touchscreen control panel providing quick and setup

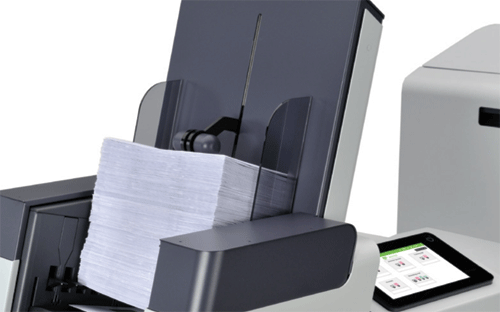

- High-Capacity Vertical Stacker holds 500 enveloped in sequential order
- Capacity to store 50 programmable jobs that are recurring
- Simply load and go as Auto Set senses and sets paper length, fold type, envelope size etc.
- Enhanced folding system that can fold/insert up to 5 pages in half fold
- Documents are folded and inserted together
- Fold types of C, V, Z, Double Parallel, no fold supported
- Correctly reads OMR, 1D and 2D barcodes printed at any side on a document.
- Eco mode is enabled that sleeps device when inactive for an hour
FD 6210 Basic 2 is another configuration among the 6210 series inserters. This inserter combines a technology of folding and inserting together with user friendly features. The processing speed of the Basic 2 can fold/insert up to 2,000 pieces per hour that improves productivity of a workplace. The FD 6210-Basic 2 model with two automatic sheet feeders which makes it different from its series and increases its hopper capacity. The machine is equipped with high-capacity vertical stacker which can hold up to 500 finished envelopes in a neat and sequential order. The series is inclusive of the 7” innovative touchscreen control panel providing easy operations and use.
The machine is so easy to operate that you can simply load and go as its AutoSetTM feature automatically senses and sets the fold type, paper length, envelope size, fold length and double document detection. The Basic 2 is mounted with high-capacity vertical stacker which carries up to 500 complete envelopes. The machine can be folded and inserted together where as the folds supported by it are C, V, Z, Double Parallel, no fold and can also utilize the fold without inserting function. The eco friendly machine puts the inserter to sleep if inactive for an hour which conserves energy and preserves the life of the inserter.
Recommendation & WarrantyThe FD 6210 Basic 2 increases the inserting capacity providing the company with accurate, folded and inserted forms in seamlessly. This inserter is ideal for small business or workplaces as it offers customers with reliable and dependable machine. To ensure customer satisfaction the FD 6210 Basic 2 is backed by 90-day warranty on parts and labor.
Frequently Asked Questions
Q: For how long am i entitled to warranty?
A: The Formax 6210 series comes with a 90 day warranty on parts excluding wearables and labor.
Q: My envelopes are double fed in to my 6210 inserter, what should i do?
A: This may occur when envelopes not placed properly in the hopper. Check and replace accordingly.
Q: How do i maintain my 6210 insterer properly?
A: Keep the system in proper condition by removing dust, paper remains etc daily.
Q: What is a folder unit?
A: The fold unit folds the documents and 6210 series can fold into C,V,Z, double V fold and no fold.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs alot then you can save it as a job for instant use.
